Mainstream OpenOCD vs. xPack

OpenOCD is a tool allowing one to communicate with a hardware debugging probe. A common way of obtaining it is through a source specific to your operating system such as apt if using Debian. However, package managers only support a past release that is stable, which means you may be missing newer features or support. Unfortunately, OpenOCD suffers from this, and new users may wonder why a board they’re trying to use is not available even though it may seem like it is available according to other sources.

Another reason may be the board isn’t under a name the user may expect initially, and some further digging may be required to find out what configuration files are needed. However, this is a different issue, and more related to finding the proper information rather than a lack of support from an older version. We’ll touch on this too, but it’s not the main reason for this write up.

To avoid going down the rabbit hole of how one may figure all this out, we’ll keep the discussion here simply about how to check if the main openocd release through apt supports your board. If not, we’ll cover one easy method to get the most recent version using xPack.

For information on how we figured this out, you can come back to see if we’ve written up that portion of a guide. For now though, it is shelved since there are far more interesting things we’d like to do.

Installing With apt

The easiest method to install OpenOCD is using the apt commands below

user@randomsignals:~$ sudo apt update
user@randomsignals:~$ sudo apt install openocd

However, at the time of this writing, we see the version is pretty old

user@randomsignals:~$ openocd -v
    Open On-Chip Debugger 0.12.0
    Licensed under GNU GPL v2
    For bug reports, read
        http://openocd.org/doc/doxygen/bugs.html

because we can see that openocd-0.12.0 was released back on 14 January 2023, by looking at their sourceforge repo and checking the details on the latest tagged release.

Checking for The Right Config Files

Now, in our case, we were trying to use an STM32C031C6 based Nucleo 64 board, using the Nucleo’s on board STLinkV2-1. For our system, the openocd files we need to check are installed in /usr/share/openocd/scripts.

user@randomsignals:~$ ls /usr/share/openocd/scripts
    bitsbytes.tcl
    board
    chip
    cpld
    cpu
    fpga
    interface
    mem_helper.tcl
    memory.tcl
    mmr_helpers.tcl
    target
    test
    tools

The interface directory contains the configuration files for the debug probes, and the target directory ones for the STM32 MCUs. Listing out each shows support for the STLink (it is recommended to use the stlink.cfg over the stlink-v2-1.cfg) but no support for the STM32C031C6, which would be expected to show as stm32c0x.cfg based on the observed naming conventions.

user@randomsignals:~$ ls /usr/share/openocd/scripts/interface | grep stlink
    stlink.cfg
    stlink-dap.cfg
    stlink-v1.cfg
    stlink-v2-1.cfg
    stlink-v2.cfg
user@randomsignals:~$ ls /usr/share/openocd/scripts/target | grep stm32
    stm32f0x.cfg
    stm32f1x.cfg
    stm32f2x.cfg
    stm32f3x.cfg
    stm32f4x.cfg
    stm32f7x.cfg
    stm32g0x.cfg
    stm32g4x.cfg
    stm32h7x.cfg
    stm32h7x_dual_bank.cfg
    stm32l0.cfg
    stm32l0_dual_bank.cfg
    stm32l1.cfg
    stm32l1x_dual_bank.cfg
    stm32l4x.cfg
    stm32l5x.cfg
    stm32mp13x.cfg
    stm32mp15x.cfg
    stm32u5x.cfg
    stm32w108xx.cfg
    stm32wbx.cfg
    stm32wlx.cfg
    stm32x5x_common.cfg
    stm32xl.cfg

That’s a bummer!

Checking for Main Branch Support

So, what do we do then? Well, one thing we should do is check if there is in fact support for the chip we want by looking at their main master branch, located here on their sourceforge page, or on their github page.

The github page is a little easier since you can search for a filename, so we’ll do that. As you can see in the screenshot below, there is in fact a file for our MCU!

stm32c0x search

One Solution: xPack Release

Great, but how do we get this? Build from source? Well, we could, but there’s a better way - xPack. xPack releases build from recent branches, and do not rely on using the latest official/tagged release. If we go to their site and search for openocd we find the latest release here.

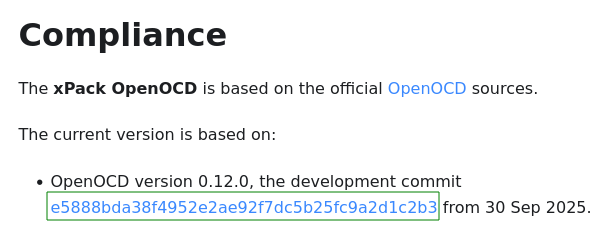

The release notes tell us what commit they used to build it, as of this writing, we see it is commit e5888bda38f4952e2ae92f7dc5b25fc9a2d1c2b3.

xPack Commit Hash

How do we check if that has what we want though?

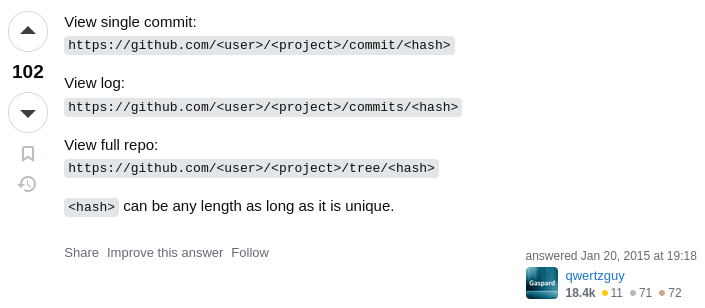

Hot Tip: To view a specific commit’s full snapshot on GitHub you can use a url of the form as shown in the screenshot below from this StackOverflow post.

View A Commit in GitHub

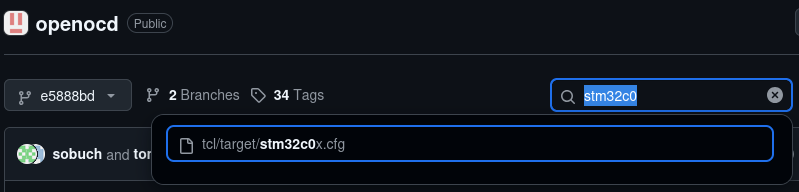

And so let’s go ahead and check if the commit used in the xPack release has the file we want. We’ll visit https://github.com/openocd-org/openocd/tree/e5888bda38f4952e2ae92f7dc5b25fc9a2d1c2b3 and search for the file. We see it is in fact in that release in the screenshot below.

xPack Commit File Check

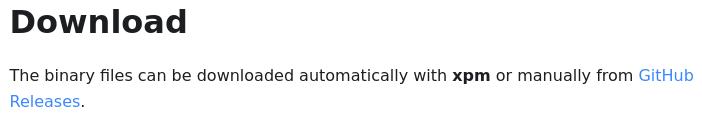

Sweet! Then we’re basically done! Using the xPack release is as simple as using xpm, or if you want to avoid installing more software just to get software, then you can download the release directly from their github release for it, as they note on their page.

xPack Download Options

If we go to that release and download the appropriate file (for us it is the linux-x64.tar.gz file) along with it’s SHA256 Sum file we can follow a few simple steps. Note, the following commands assume the tar.gz and tar.gz.sha file are both in the Downloads folder. The -c flag lets sha256sum check the tar.gz.sha contents for files with matching names in the same directory to ensure the hash matches the one given in the tar.gz.sha file.

For us that involved running:

user@randomsignals:~$ cd ~/Downloads
user@randomsignals:~/Downloads$ sha256sum -c xpack-openocd-0.12.0-7-linux-x64.tar.gz.sha
xpack-openocd-0.12.0-7-linux-x64.tar.gz: OK

That output tells us the hash was valid, so we should be good. The xPack is all self contained, so one only needs to unpack, in our case that involved running the following commands. Note, this will extract it in your Downloads folder, you can move it where you like before or after.

user@randomsignals:~/Downloads$ tar xvzf xpack-openocd-0.12.0-7-linux-x64.tar.gz

Note, the xvzf flags stand for e(x)tract (v)erbose g(z)ip (f)ile.

Checking the Install

Now, we of course want to verify we have everything we need. Let’s look in the new folder the extraction made.

user@randomsignals:~/Downloads$ cd xpack-openocd-0.12.0-7-linux-x64
user@randomsignals:~/Downloads/xpack-openocd-0.12.0-7-linux-x64$ ls
    bin
    distro-info
    libexec
    openocd
    README.md

The bin folder contains the executable, and the target and interface files we mentioned before are in openocd/scripts. We can check that and also see if it runs and what version we have to verify. Then we can double check that it has the proper target file as well.

user@randomsignals:~/Downloads/xpack-openocd-0.12.0-7-linux-x64$ ls bin
    total 4.2M
    -rwxr-xr-x 1 user user 4.2M Oct  4  2025 openocd

user@randomsignals:~/Downloads/xpack-openocd-0.12.0-7$ ./bin/openocd -v
xPack Open On-Chip Debugger 0.12.0+dev-02228-ge5888bda3-dirty (2025-10-04-22:42)
Licensed under GNU GPL v2
For bug reports, read
    http://openocd.org/doc/doxygen/bugs.html

user@randomsignals:~/Downloads/xpack-openocd-0.12.0-7-linux-x64$ ls openocd/scripts
    total 84K
    -rw-r--r--  1 user user 1.7K Oct  4  2025 bitsbytes.tcl
    drwxr-xr-x 10 user user  20K Oct  4  2025 board
    drwxr-xr-x  5 user user 4.0K Oct  4  2025 chip
    drwxr-xr-x  2 user user 4.0K Oct  4  2025 cpld
    drwxr-xr-x  4 user user 4.0K Oct  4  2025 cpu
    -rw-r--r--  1 user user  962 Oct  4  2025 file_renaming.cfg
    drwxr-xr-x  2 user user 4.0K Oct  4  2025 fpga
    drwxr-xr-x  6 user user 4.0K Oct  4  2025 interface
    -rw-r--r--  1 user user 1021 Oct  4  2025 mem_helper.tcl
    -rw-r--r--  1 user user 4.4K Oct  4  2025 memory.tcl
    -rw-r--r--  1 user user 2.1K Oct  4  2025 mmr_helpers.tcl
    drwxr-xr-x 10 user user  12K Oct  4  2025 target
    drwxr-xr-x  2 user user 4.0K Oct  4  2025 test
    drwxr-xr-x  2 user user 4.0K Oct  4  2025 tools
user@randomsignals:~/Downloads/xpack-openocd-0.12.0-7-linux-x64$ ls openocd/scripts/target | grep stm32c0
    stm32c0x.cfg

There we have it, a version we can now use.
